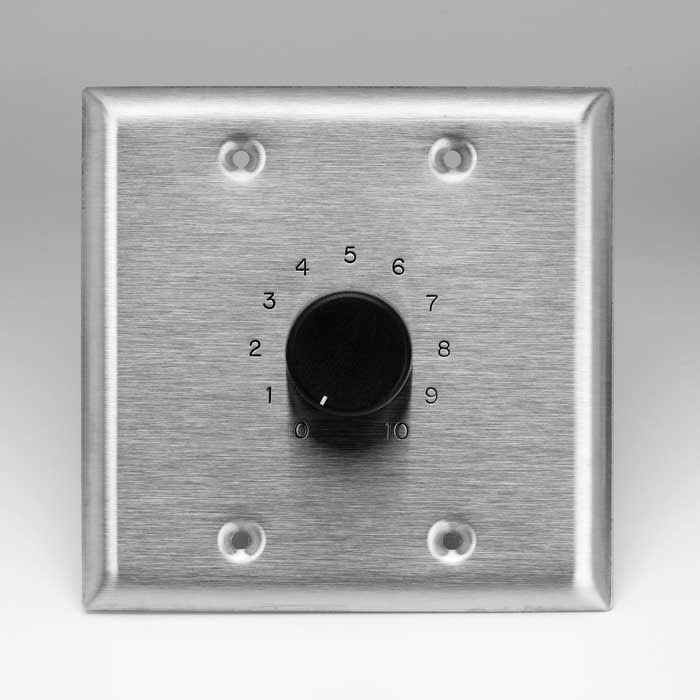

Lowell 150LVCS Attenuator-150W Stereo 70V/25V 2-gang Stainless Steel

Write a Review

Ask a Question

150W stereo volume control with rotary switch and two-gang wall plate.

SPECIFICATIONS

• Power Rating: 150W

• Attenuation: 3dB per step

• Two positions of 6dB prior to off

• Use With: 25/70/100V speaker line

• Activation: Rotary dial

• Wire Capacity: 14-gauge

• Wall Plate: 2-gang standard

• Finish: Stainless Steel

• Fits standard E.O. box (2.5 in. min. depth)

COMPLIANCE & CERTIFICATION

• Made in the U.S.A. with global components

The stereo volume control for distributed mono systems, distributed mono systems with subwoofer, or distributed stereo applications shall be Lowell Model No. 150LVCS with power rating of 150W per channel, 3dB per step attenuation and two 6dB positions before "Off." The control shall have plug-in termination for up to 14-gauge wire for 70V or 100V input connections from the amplifier and 70V or 100V output to the speaker/transformer assemblies. The two-gang standard wall plate shall have a stainless steel finish. It shall include a black rotary knob. The volume control shall mount in a standard two-gang E.O. box with minimum depth of 2.5 in. with mud ring, if used. (Box/mud ring not included.)

OPTIONS (order separately)

• P1X-2: Surface-mount wall box, 2-gang

OTHER MODELS:

150LVCS-DSB  Decorator/Stainless & Black
