Lowell D1410-72 Speaker/Grille Assembly-4in Spkr-15W 5W 70/25V xfmr White Grille

Lowell D1410-72 Speaker/Grille Assembly-4in Spkr-15W 5W 70/25V xfmr White Grille
Click To Enlarge
MSRP: $87.24
Sale Price: $58.64
You Save $28.60 (33%)
USD Priced Each
Qty:

$50 Minimum Order

Normally in stock. Please contact us to confirm.
Image may vary. Please contact us if you need more images, quote or other information.

• Brand: Lowell Manufacturing

• MPN: D1410-72

• Ship Weight: 5.1lbs

• Condition: New

• Availability: In Stock

• Seller: A-I Consolidated

• Category: Electronics > Audio > Audio Components

Lowell D1410-72 Speaker/Grille Assembly-4in Spkr-15W, 5W 70/25V xfmr, White Grille.

Driver/Grille Assemblies

Some driver/grille assemblies include a transformer. A backbox can be ordered separately. Before installing, be sure to check space above the ceiling to avoid hidden obstructions.



D1410-72: Speaker/Grille Assembly

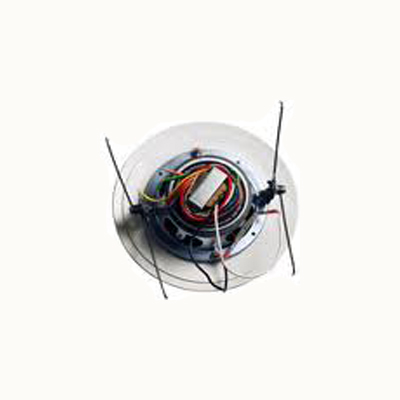

Speaker/grille assembly with 4 inch driver, transformer and grille. IT provides full fidelity sound, clear intelligibility, very wide dispersion with minimal architectural visibility.


PERFORMANCE

• Full fidelity sound, very wide dispersion


INCLUDES

• Driver (JR410): 4 in. 15W high compliance driver employs 10 oz. ceramic magnet. Cone is paper with treated cloth surround for smooth, extended frequency response and a clean, natural sound.

• Transformer (TLM-572):  70V/25V dual-voltage transformer.  Taps at 0.25, 0.5, 1, 2, 5W.

• Grille (WB-4):  Precision-formed steel. 7.25 in. diameter. White.


COMPLIANCE & CERTIFICATION

• Made in U.S.A. with global components



A&E SPECIFICATIONS

The driver–transformer–grille assembly shall be Lowell Model No. D1410-72 which shall include a 4 in. high-compliance driver with wired transformer and screw-mounted grille. The driver shall have a 15 watt RMS power rating and employ a 10 oz. ceramic magnet and paper cone with treated cloth surround. Frequency response shall be 67Hz–16kHz (±6dB) and 57Hz–20kHz (±7.4dB) with an average sensitivity of 90.8dB measured 1W/1M. The transformer shall be a factory-wired 70/25V unit with primary taps at 0.25, 0.5, 1, 2 and 5W. The 7.25 in. diameter steel grille shall be screw-mounted to the driver and have a white powder epoxy finish.


COMPATIBLE COMPONENTS (order separately)

• Backbox:  CP4, DX104

• Tile Bridge:  LBS4-DX, LBS4-R
