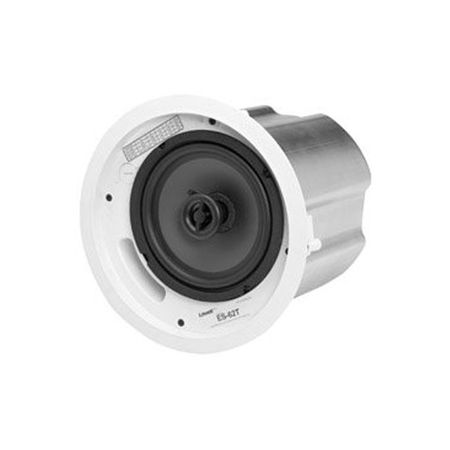

Lowell ES-62T - 6.5 in, In-Ceiling Speaker, coaxial, ready-to-install.

Write a Review

Ask a Question

Lowell ES-62T 6.5in Dia in-ceiling coaxial speaker system, press-fit grille, backbox-Buy In Pairs.


ES In-Ceiling Speakers



In-ceiling speaker with 4 inch dual cone driver or 6-1/2 inch coaxial driver ships ready to install. Ideal for use as a residential ceiling speaker or commercial ceiling speaker.

• Back-can with mounting dogs
• Fine mesh press-fit grille
• Scrim and pull-tool
• Support rails
• Reversible mounting dogs
• C-ring
• Template
• Paint shield
• Install in drywall, tile, or wood

ES-62T: In-Ceiling Speaker

Ceiling speaker with 6" driver has full-frequency response for music and excellent intelligibility for speech. The speaker is ideal for commercial or residential applications. Installs in drywall, wood, tile or almost any ceiling with thickness up to 2-1/8 inches.

---

PERFORMANCE

Foreground or background music.

---

ASSEMBLY INCLUDES

Driver: 6.5 in. coaxial driver with high-frequency PEI tweeter and acoustic lens

Transformer: 32W

Enclosure: Zinc-plated steel back-can with reversible mounting dogs

Grille: Press-fit grille with scrim and pull-tool

Mounting Aids: Plastic paint shield to protect driver, C-ring and support rails

---

COMPLIANCE & CERTIFICATION

• UL 1480 fifth edition general signaling (USA)

• UL 2043 suitable for use in return air plenum space

• CSA C22.2 No. 205-M1983 general signaling (Canada)

OPTIONS (order separately)

• ES-6-RIB: Rough-in bridge

• ES-6-RTR: Retrofit trim ring
