Electro-Voice EV EVC-1122-95B - F.01U.329.285

Write a Review

Ask a Question

Electro-Voice - - EVC-1122-95B - Call For Pricing - F.01U.329.285 - 12" speaker, 90x55 indoor, black.
Note - ships without rigging hardware

EVC-1122-95B

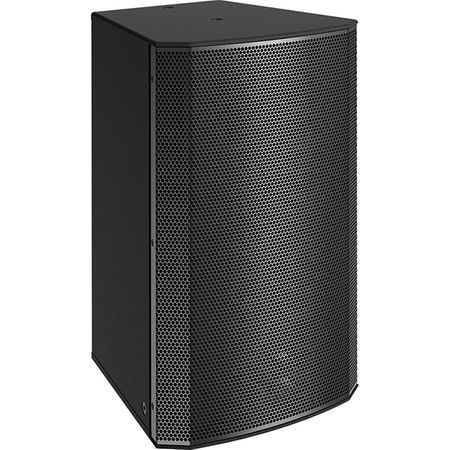

12" speaker, 90x55 indoor, black.

Two-way compact loudspeaker system, IP44, EVCoat

Note - ships without rigging hardware

Weight Net	44.75lbs (20.3kg)
Axial Sensitivity (SPL, 1 W @ 1 m)	95dB
Color	Black or white
Connectors	Dual four-pin 10 AWG (6 mm) Phoenix/ Euro Block screw-terminals
Dimensions (H x W x D)	616 x 395 x 401mm
Enclosure	15mm weather-resistant plywood with EV Coat
Environmental Specs	IEC 60529, IP44 (IP55 for PI versions)
Frequency Response (-3 dB)	70Hz-22Hz
Grille	18 GA cold-rolled steel with rotatable logo (18 GA stainless steel with hydrophobic cloth on PI models)
HF Transducer	DH-3
LF Transducer	EVS-12M
Minimum Impedance	7Ω
Nominal Impedance	8Ω
Passive crossover frequency	1.6kHz
Power Handling (Continuous / Peak)	300/600/1200W
Rec. high-pass frequency, 4th Order	45 Hz for 8Ω (50 Hz with TK-150 transformer)
Shipping Weight	50.04lbs (22.7kg)

Ordering Information:

Order number EVC-1122-95W (White)

Order number EVC-1122-95PIB (IP55, weather-resistant black)

Order number EVC-1122-95PIW (IP55, weather-resistant White)

Accessories:

Order number EVC-UB2-BLK (U-Bracket black finish)

Order number EVC-UB2-WHT (U-Bracket White finish)

Order number EVC-WB-BLK (Wall Bracket black)

Order number EVC-WB-WHT (Wall Bracket White)

Order number CDG-LB ( Dual gland nut cover kit)

Order number CDNL4-LB ( Dual NL4 cover kit)

Order number CSG-LB ( Single gland nut cover kit, black)

Order number EBK-M10-3PACK ( Forged M10 eyebolt kit, set of 3)

Order number TK-150 (Transformer kit 150W/70V)
