Bud Industries NBF-32016, L12 X W8 X D5, NEMA 4X Box IP67

1 Review

See 1 Question & 1 Answer

NBF-32216NEMA Boxes UL/NEMA/IEC NBF Series

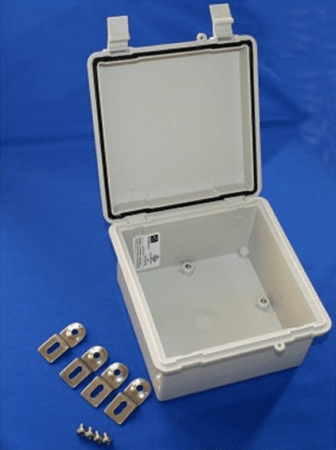

These gasketed all-plastic enclosures have been designed to meet NEMA 1, 2, 4 and 4x and IEC529-IP66 requirements, which allows them to be used in many wet, dirty and/or corrosive environments.

• Designed to IP66 of IEC 529 and NEMA 1, 2, 4 and 4x specifications

• All plastic construction including hinge pins

• Comes complete with stainless steel wall mounting brackets and hardware

• Indoor Versions:

  • ABS plastic enclosures are molded out of light gray material with UL94-HB flammability rating. (No UL Label)

  • ABS/PC blended plastic enclosures are molded out of light gray material with UL94-5VA flammability rating. Suggested service temperature range -40C to +70C.

  • Clear doors, for all models, are molded out of polycarbonate material with UL94-V0 flammability rating

• Outdoor Versions:

  • *PC/PBT blended plastic enclosures are molded out of light gray material with UL94-5VA flammability rating and UV stabilized

ABS Version :

 NBF-32016

Indoor Version:

Solid Door - NBF-32116

Clear Door - NBF-32216

Outdoor Version:

Solid Door - NBF-32316

Clear Door - NBF-32416

 STEEL INTERNAL PANELS - FOR ABOVE MODELS

NBX-32916 - 10.51 x 6.69 x 0.06

PLASTIC INTERNAL PANELS FOR NBF SERIES ENCLOSURES

NBX-32916-PL - 10.51 x 6.69 x 0.13

DRAWING CLICK HERE
