Bud Industries NBX-10910, L2 X W2 X D1, NEMA Box, Air & Moisture Vents

Write a Review

Ask a Question

Bud Industries NBX-10910 - NEMA Box Accessories-IPV series-Accessories Air & Moisture Vents-L2 X W2 D1, Ventilator.

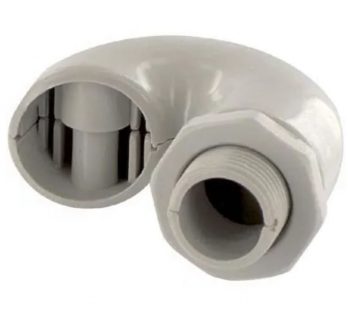

NBX-10910 - Air & Moisture Vent Style A

• Vent equalizes internal and external temperature and pressure, and prevents internal condensation
• All plastic construction
• Each vent comes with housing, gasket and locking nut
• 2.05 x 1.53 x 0.95 inches
• Mounting hole size 0.69 inches
• Weight 0.19 pounds

DRAWING AVAILABLE UPON REQUEST

Air & Moisture Vents

Small Air & Moisture Vents Models:

The small size has two mounting styles available.

All plastic construction

Each vent comes with housing, gasket and locking nut.

Small Air & Moisture Vents
Catalog Number	Style	Weight/oz.
NBX-10910	A	3
NBX-10911	B	3

Large Air & Moisture Vents Models:

IPV-1115/1116 -

The large size can be mounted with or without a cooling fan.

Large Air & Moisture Vents
Catalog Number	Fan Dia. (mm) (Not included)	Weight/oz.
IPV-1115	60	8
IPV-1116	80	10

NEMA and IP Rated Box Accessories

After selecting your NEMA or IP-rated box, you need related components to make your enclosure functional without compromising its dust and moisture protection. One great example is an IP-rated vent, which allows air circulation but blocks moisture, even underwater. Every NEMA box accessory you may need is available from Bud. Accessories include:

• cable glands that help preserve rated protection
• internal panels for mounting components
• mounting brackets that let you put your box where you need it
• moisture vents that help eliminate damaging condensation
• and more

IPV-1116 - Large Air & Moisture Vent 3.94 x 3.78 x 2.58 Inches

IPV-1115 - Large Air & Moisture Vent 2.91 x 2.76 x 2 Inches

NBX-10910 - Air & Moisture Vent Style A

NBX-10911 - Air & Moisture Vent Style B

IPV-65100-B - IP65 Rectangular Vent, Black

IPV-65100-W - IP65 Rectangular Vent, White

IPV-67101-B - IP67 Air and Moisture Vent, M10*1.0, 0.63 Inches Dia., Black

IPV-67121-B - IP67 Air and Moisture Vent, M12*1.5, 0.71 Inches Dia., Black

IPV-67161-B - IP67 Air and Moisture Vent, M16*1.5, 0.79 Inches Dia., Black

IPV-67181-B - IP67 Air and Moisture Vent, M18*1.5, 0.79 Inches Dia., Black

IPV-67322-B - IP67 Air and Moisture Vent, M32*1.0, 0.91 Inches Dia., Black

IPV-67321-B - IP67 Air and Moisture Vent, M32*1.5, 1.22 Inches Dia., Black

IPV-67501-B - IP67 Air and Moisture Vent, M5*0.8, 0.55 Inches Dia., Black

IPV-67501-G - IP67 Air and Moisture Vent, M5*0.8, 0.55 Inches Dia., Gray

IPV-67601-B - IP67 Air and Moisture Vent, M6*1.5, 0.55 Inches Dia., Black

IPV-67601-G - IP67 Air and Moisture Vent, M6*1.5, 0.55 Inches Dia., Gray

IPV-67801-B - IP67 Air and Moisture Vent, M8*1.0, 0.63 Inches Dia., Black
