Staco SCV-60021-P Single Phase UPS: On-Line Double Conversion

Staco SCV-60021-P Single Phase UPS: On-Line Double Conversion
Click To Enlarge
MSRP: $5,806.24
Sale Price: $3,699.74
You Save $2,106.50 (36%)
USD Priced Each
Minimum Buy Qty: 1
Returnable: Yes
Qty:

$50 Minimum Order

Normally in stock. Please contact us to confirm.
Lead time if out: 2 Days
Image may vary. Please contact us if you need more images, quote or other information.

• Brand: Staco Energy Products Company

• MPN: SCV-60021-P

• Ship Weight: 323lbs

• Condition: New

• Availability: In Stock

• Seller: A-I Consolidated

• Keywords: SCV-60021-P, Staco

• Category: Electronics > Electronics Accessories > Power > Power Control Units

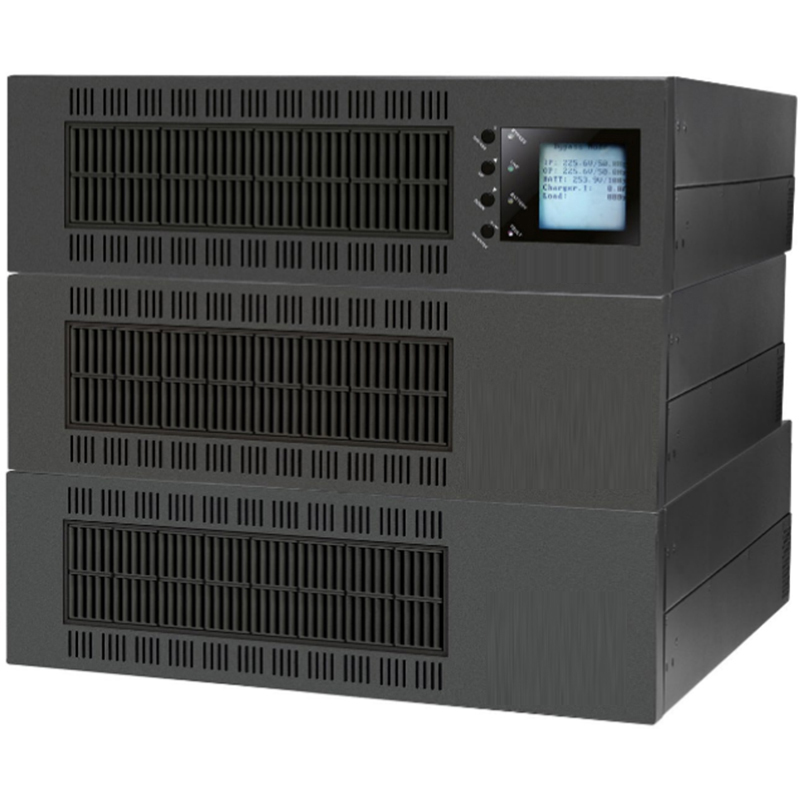

Staco SCV-60021-P - Staco VP Rack Mount system consisting of (3) modules - Electronics, Isolation Transformer and Battery Pack - plus Parallel Card and Cable. Provides 8.6 minutes of backup power for 200, 208, 220, 230, or 240 Vac applications needing 208/120, 240/120 or 120 Vac output.

Electronics: SCV-ELE-6K, UPS module, rated at 6kVA/5.4kW; Input Voltage Range: 176-300 VAC; 46-64 Hz Auto Sensing -- Stability +/- 2% Free Running; Single Phase; Up to 0.97 pf @ 100% Linear Load; +/-1% Regulation, 0 ms Transfer Time, Sine Wave, THD < 3% (linear load); DC Start.
Input Connection: Hardwire
Output: Hardwire 208 or 240, Single Phase. (-240 models come with a quick-start guide to assist in setting output voltage).
The DSP Self-Diagnostics assists in pinpointing system faults rapidly. Front Panel LED + LCD Mode and Fault Indicators, LCD Readings for Voltage and Frequency, Load Percent, Battery Voltage and unit Temperature; Self Diagnostics upon Power-on and 24-hour routine check; Front Panel Settings & Software Control; Audible and Visual Alarms. Shipped with standard monitoring/shutdown software, allowing for control of the UPS and graceful shutdown during power failures, remote testing of major operating functions, and communication via the optional SNMP/WEB card.
Listings UL1778 & CE � FCC Class A
Electronics Dimensions (each): 5.15" H x 17.24" W x 26.64" D; [130.8 mm H x 438.0 mm W x 676.6 mm D]
Electronic Weight (each): 37 lbs.; [17 kg]

ISO Pack: SCV-ISO-6K-120, A Galvanic Isolation Transformer providing complete isolation between the input and the output.

Input Voltage: 208 or 240V with Output Voltage: 208/120, 240/120 or 120 V
OR
Input Voltage: 120V with Output Voltage: 208 or 240V
Dimensions (each): 5.15" H x 17.24" W x 24.81" D; [130.8 mm H x 438.0 mm W x 630.2 mm D]
Weight (each): 148 lbs.; [67 kg]

Battery Pack: SCV-BAT-6K, External Plug-in & Play Battery Pack containing (20) each HRL1234W 12V, 34W/9Ah "Hot-Swappable" Sealed Lead Acid Maintenance Free Batteries.
Equipped with Advanced Battery Management to automatically manage the end of discharge voltage according to load, to prevent deep discharge of the built-in battery during an outage, preserving battery life.
Battery Pack Dimensions (each): 5.15" H x 17.24" W x 24.63" D; [130.8 mm H x 438.0 mm W x 625.6 mm D]
Battery Pack Weight (each): 138 lbs.; [63 kg]

Total System Dimensions (each): 15.45" H x 17.24" W x 26.64" D; [392.4 mm H x 438.0 mm W x 676.6 mm D]
Total System Weight (each): 323 lbs.; [147 kg]
