Staco SCV-ELE-10K-6200

Staco SCV-ELE-10K-6200
Click To Enlarge
MSRP: $3,520.83
Sale Price: $2,633.59
You Save $887.24 (25%)
Free Ground Shipping
USD Priced Each
Minimum Buy Qty: 1
Returnable: Yes
Qty:

$50 Minimum Order

Free Ground Shipping. Normally in stock. Please contact us to confirm.
Image may vary. Please contact us if you need more images, quote or other information.

• Brand: Staco Energy Products Company

• MPN: SCV-ELE-10K-6200

• Ship Weight: 44lbs

• Condition: New

• Availability: In Stock

• Seller: A-I Consolidated

• Keywords: SCV-ELE-10K-6200, Staco, Free Shipping

• Category: Electronics > Electronics Accessories > Power > Power Control Units

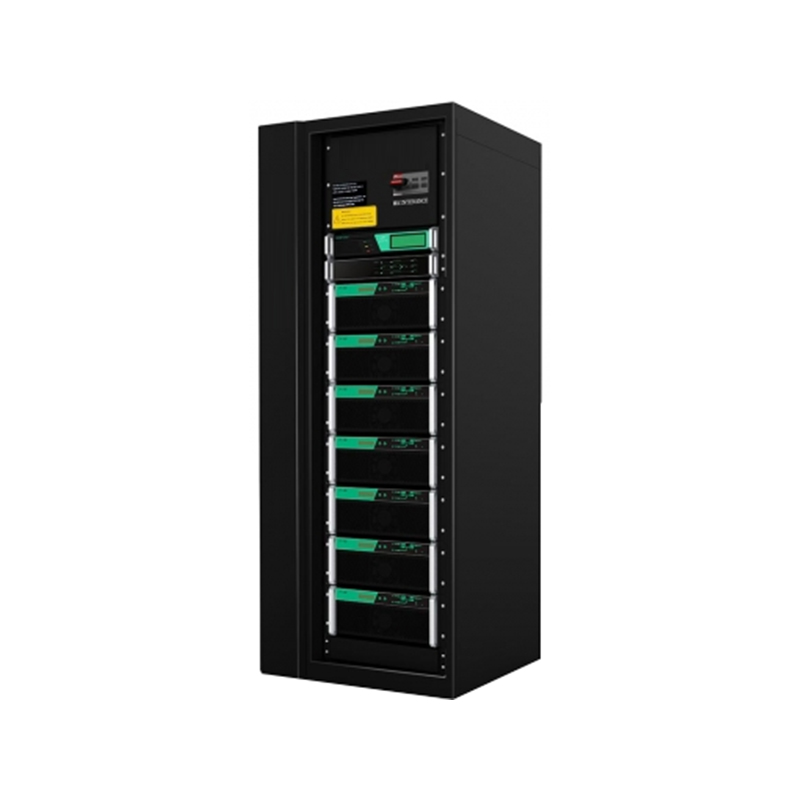

Staco SCV-ELE-10K-6200 - UPS module, rated at 10 kVA/9 kW
- Input: Hardwire, Input Voltage Range: 176-300 VAC, 46-64 Hz Auto Sensing
- Output: Hardwire, factory set to 200V, 60 Hz, Single Phase

Stability +/- 2% Free Running; Single Phase; Up to 0.97 pf @ 100% Linear Load; +/-1% Regulation, 0 ms Transfer Time, Sine Wave, THD < 3% (linear load); DC Start.
The DSP Self-Diagnostics assists in pinpointing system faults rapidly. Front Panel LED + LCD Mode and Fault Indicators, LCD Readings for Voltage and Frequency, Load Percent, Battery Voltage and unit Temperature; Self Diagnostics upon Power-on and 24-hour routine check; Front Panel Settings & Software Control; Audible and Visual Alarms. Shipped with standard monitoring/shutdown software, allowing for control of the UPS and graceful shutdown during power failures, remote testing of major operating functions, and communication via the optional SNMP/WEB card.
Listings UL1778 & CE Ė FCC Class A
Dimensions (each): 5.15" H x 17.24" W x 30.77" D; [130.8 mm H x 438.0 mm W x 781.6 mm D]
Weight (each): 44 lbs.; [20 kg]
