Whirlwind WFFD12X1KIT - Wall Frame Door Assembly, for Recessed Electrical Box, Black

Write a Review

Ask a Question

Whirlwind WFFD12X1KIT - Wall frame 13" x 1", black with door and WFI1212B fits 12" recessed electrical box.

Wall Frame Door

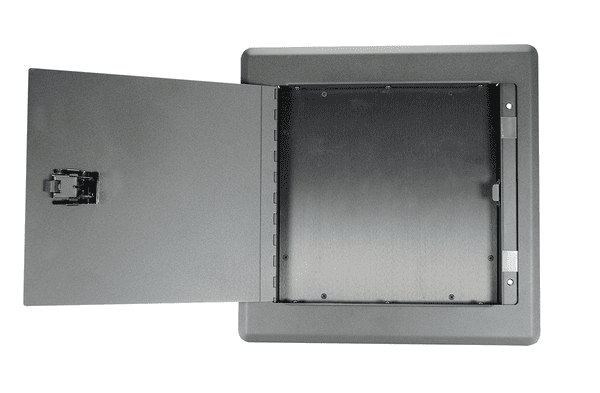

The Whirlwind WFFD12X1KIT is a flush mount, hinged door assemblies that attach to a 12”x 12” NEMA Type 1 box.

It provides an attractive, locking door for Whirlwind wall frames that recess connector panels inside the backbox.

A blank connector mounting plate (part# WFI12X12) is included with the complete assembly.

The outside dimension of the door bezel is 14”x14”

The door can be installed to open either left or right.

Can also punch, load and engrave panels that fit into the wall frame enclosure, ready to wire and install, for contractor convenience. Ask for details or quotes.

Wall Frame door kits* (only available for recessed frames)

Part #	includes
WFFD12X1KIT	Wall frame 13"x13"x1", black, w/door kit, insert included
WFFD12x2.5KIT	Wall frame 13"x13"x2.5", black, w/door kit, insert included

*not available as a retrofit

---

Standard Recessed Wall Frames, No Kits

(WFF series) Recessed mount version, mounts "in the wall" and its mounting flanges extend one-half inch beyond the edge of the backbox on all four sides to provide a visually appealing trim ring effect to the finished wall.

(WFS series) Surface mount version mounts "on the wall" and its mounting flanges are the same dimensions as the corresponding backbox. Optional Whirlwind black powder-coated backboxes for the surface mount versions (as pictured above) are available for a finished look as opposed to a NEMA type electrical box, see table below.

Frame finish is black powder-coat. Custom finishes available upon request.

Wall Frame Model # and Specs

Frame Part #	Dimensions	Backbox (optional, not included)
WFS8x1	8" X 8" X 1"	fits 8" X 8" X 4" surface-mounted electrical box
WFS8x2.5	8" X 8" X 2.5"	fits 8" X 8" X 6" surface-mounted electrical box
WFF8x1	9" X 9" X 1"	fits 8" X 8" X 4" recessed electrical box
WFF8x2.5	9" X 9" X 2.5"	fits 8" x 8" X 6" recessed electrical box
WFS12x1	12" X 12" X 1"	fits 12" X 12" X 4" surface-mounted electrical box
WFS12x2.5	12" X 12" X 2.5"	fits 12" X 12" X 6" surface-mounted electrical box
WFF12x1	13"x13"x1"	fits 12" X 12" X 4" recessed electrical box
WFF12x2.5	13" X 13" X 2.5"	fits 12" X 12" X 6" recessed electrical box

Insert Panel Model # and Specs

Insert Plate Part #	Dimensions	Fits These Frames
WFI8X8	6.5" X 6.5" 5.5" sq. usable area	WFF8X8 and WFS8X8 series frames
WFI12X12	10.5" X 10.5" 9.5" sq. usable area	WFF12X12 and WFS12X12 series frames

Optional Whirlwind Black Powder Coated Backbox For Surface Mount Frames

Backbox Part #	Dimensions	Fits These Frames
BB8X8X4B	8" X 8" X 4"	WFS8X8X1B; WFS8X8X2.5B
BB12X12X4B	12" X 12" X 4"	WFS12X12X1B; WFS12X12X2.5B

Optional NEMA Gray Electrical Backbox For Flush Mount Frames

Backbox Part #	Dimensions	Fits These Frames
ASE8X8X4	8" X 8" X 4"	WFF8X8X1B; WFF8X8X2.5B
ASE12X12X4	12" X 12" X 4"	WFF12X12X1B; WFF12X8X2.5B
