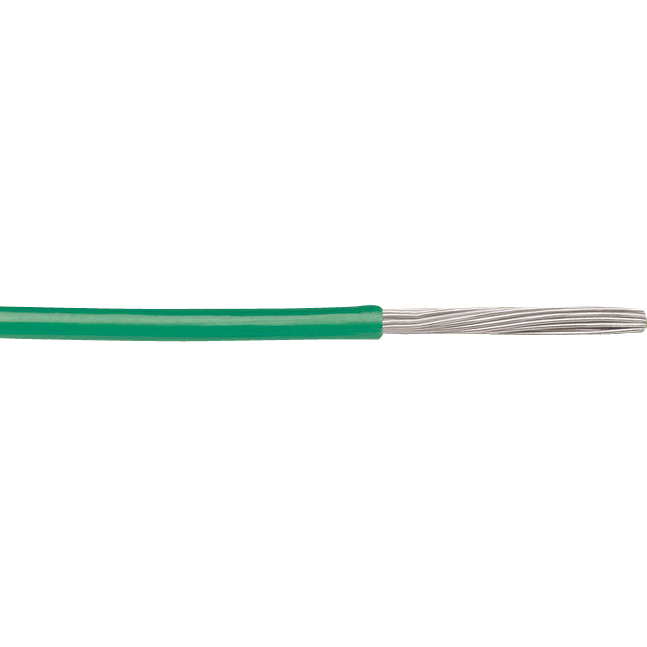

Alpha Wire 6710 GY190 - Wire 6710 Gr/Yl 25000 Ft Drum

Alpha Wire 6710 GY190 - Wire 6710 Gr/Yl 25000 Ft Drum
Click To Enlarge
MSRP: $9,352.03
Sale Price: $3,865.49
You Save $5,486.54 (59%)
USD Price Per: 25000 Dr
Minimum Buy Qty: 1
Order In Multiples: 1
Discounts for Higher Quantity
Call For more info
Qty:

$50 Minimum Order

Normally in stock. Please contact us to confirm.
Image may vary. Please contact us if you need more images, quote or other information.

• Brand: Alpha Wire

• MPN: 6710 GY190

• Ship Weight: 37.5lbs

• Condition: New

• Availability: In Stock

• Seller: A-I Consolidated

• Keywords: 6710 GY190, Alpha Wire, Wire 6710 Gr/Yl 25000 Ft Drum, Electrical Wires & Cable

• Category: Hardware > Power & Electrical Supplies > Electrical Wires & Cable

EcoWire® Hook-Up Wire:

EcoWire is the latest innovation in hook-up wire.

EcoWire achieves increased performance in a wire that is fully recyclable.

Ecological benefits

EcoWire derives its advantage from its unique insulation, a modified polyphenylene ether (mPPE) thermoplastic. mPPE-based insulation is non-halogenated and contains no heavy metal pigments, allowing it to help manufacturers meet Waste Electrical and Electronic Equipment (WEEE) requirements.

Performance advantages, including:

  • Better dielectric strength
  • Wide temperature range that meets VW-1
  • Low specific gravity
  • Up to 45% smaller diameter
  • Up to 40% lighter
  • Fully Recyclable

Part #

Voltage

AWG

Stranding

Insulation Thickness

Nominal Diameter

Insulation Material

Applicable Specifications

6710

600

28

7/36

0.01

0.034

mPPE

CE - CE Conformance, CSA AWM I A/B, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL AWM 11028, UL VW-1

Ordering:

eaxample: 6710 BK001 (6710 BLACK 1000 FT)

Pick color:

BK=BLACK DB=DARK BLUE BL=BLUE RD=RED

BR=BROWN YL=YELLOW GR=GREEN OR=ORANGE

 VI=VIOLET SL=SLATE WH=WHITE

 GY=GREEN/YELLOW WU=WHITE/BLUE

Pick Length:

190= 25000 DR

013= 5000 FT

001= 1000 FT

005= 100 FT

NOTE:

Certain colors and put-up combinations may only be available by special order, minimums may apply.
