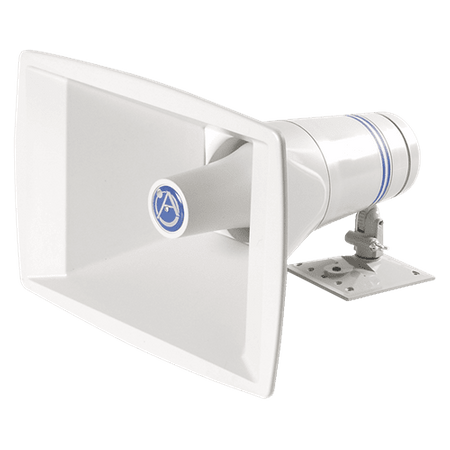

Atlas Sound APX40TN - Constant-Directivity 40W Paging Loudspeaker with Rotating Bell

Atlas Sound APX40TN - Constant-Directivity 40W Paging Loudspeaker with Rotating Bell
Click To Enlarge
MSRP: $176.99
Sale Price: $125.03
You Save $51.96 (29%)
USD Priced Per Each
Order In Multiples: 1
Qty:

$49 Minimum Order.



Save up to 60%. Contact us for Special Pricing combining product, quantity, shipping and terms. Email [email protected]

• Brand: Atlas Sound

• MPN: APX40TN

• Ship Weight: 18.7lbs

• GTIN: 612079163939

• Condition: New

• Availability: In Stock

• Seller: A-I Consolidated

• Category: Electronics > Audio > Audio Components

Atlas Sound APX40TN Constant-Directivity 40W Paging Loudspeaker with Rotating Bell.

APX40TN

CONSTANT-DIRECTIVITY 40W PAGING SPEAKER AND ROTATING BELL

Public address

Paging applications

Quick and easy installation

Model APX40TN is a conservatively-rated, 40 watt constant-directivity paging speaker.

This constant-directivity speaker offer exact positioning flexibility with a simple twist of the wrist. The APX speaker is well-suited for indoor applications including commercial, light industrial, and large retail/distribution applications where clear and pleasant indoor paging/communications and security are required. The speaker is also appropriate for installation in outdoor retail, commercial, recreational, and public use areas where dependable weatherproof performance is needed for communications and security.

The neutral-grey finish compliments most interior or exterior surroundings.

It may also be painted to match installation guidelines or cosmetics.

FEATURES
  • 40 Watt Model Provides Better Output Over Competitive 15 and 30-Watt Standards
  • Built-in Screen Protects Against Bug Nesting
  • Coverage of 60° x 40° Across a Wide Frequency Range for Predictable Beamwidth Control
  • Loudspeaker is Molded of High-Impact, Neutral-Grey Polycarbonate Resin with UV Light Inhibitor
  • Rotating Bell Pivots in 15° Increments for Exact On-Site Positioning of Projection Angles Detailed in Acoustic Simulation Programs
  • Universal 25/70/100V Transformer Includes a Rotary-Dial Selector for Easy Tap Identification
  • Zinc die cast mounting bracket may be mounted to standard E.O. boxes banded to poles or removed for easy retrofit of existing AP Series loudspeakers.
SPECIFICATIONS
FREQUENCY RESPONSE 400Hz - 7.5kHz
SENSITIVITY 107dB
POWER TAPS 2.5, 10, 20, 30, 40 @ 70.7V
POWER RATING 40 watts
HEIGHT 10 1/4" (26.035 cm)
WIDTH 14 1/2" (36.83 cm)
DEPTH 13 1/4" (33.655 cm)
SHIPPING WEIGHT 9.00 lbs (4.08 kgs)
COLOR Pantone Warm Gray 3 C - RAL 7044
