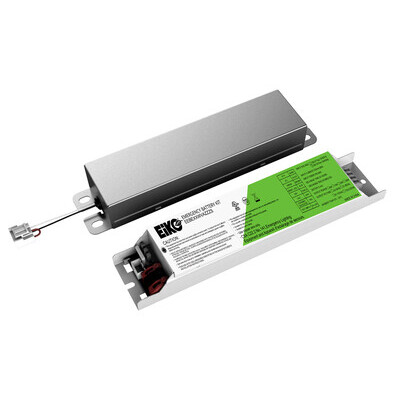

Eiko EEBN15WUA050 - 10896, EiKO Emergency Battery Kit Internal 15W 120-277VAC 25-50VDC CEC

Write a Review

Ask a Question

Eiko EEBN15WUA050 - EiKO Emergency Battery Kit Internal 15W 120-277VAC 25-50VDC CEC

EEB - EiKO Emergency Battery Kit

DESCRIPTION

An LED emergency driver that allows the same LED fixture to be used for both normal and emergency operation, featuring integrated self-diagnostic circuitry that automatically conducts regular tests to verify proper emergency capability.

FEATURES

• Self-diagnostic circuitry performs annual/monthly testing automatically, reducing maintenance costs

• Auto-adjusting Class 2 25-50VDC output accommodates a wide range of forward voltage LED designs

• Constant power design provides constant light output for 90 minutes

• Listed for field or factory installation
• Two different form factors allow for greater flexibility when adding to fixures

LISTINGS

• UL Listed for dry/damp locations
• Meets CEC Title 20 (California Energy Commission) efficiency standards

PERFORMANCE

• 90 minutes of emergency operating power at the rated wattage
• Operates an LED array load at 8W, 15W, 20W, or 30W with constant power at a rated output voltage of 25-50V

ELECTRICAL SPECIFICATIONS

• Input voltage: 100-277V 50/60Hz
• Input power: 7W (max)
• Output voltage: 25-50VDC
• Power Factor: >0.85
• Operating Temp: 0° - 50° C
• Emergency operation: ≥90 mins
• Recharge: 24 hrs

THERMAL

• 32°F to 122°F (0°C to 50°C) operating temperature

CONSTRUCTION

• Long-life, maintenance-free, high temperature, recyclable lithium battery

WARRANTY

• 5 year limited warranty

Ordering Information:

Model	Internal/External	Input Power	Voltage AC	Revision	Voltage DC
EEB - EiKO Emergency Battery Kit	N - Internal E - External	08W - 8W 15W - 15W 20W - 20W 30W - 30W	U - 120-277VAC H - 100-347VAC	A0 - Revision	50 - 25-50V

Ask for Series Brochure or Specification Sheet. Can provide other models, accessories, and other materials.
