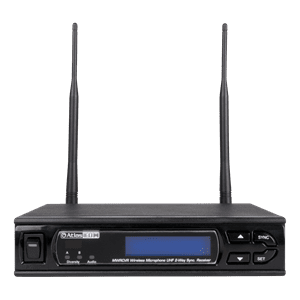

Atlas Sound MWRCVR - Wireless Microphone UHF 100 Frequency 2-Way Sync. Receiver

Atlas Sound MWRCVR - Wireless Microphone UHF 100 Frequency 2-Way Sync. Receiver
Click To Enlarge
MSRP: $565.99
Sale Price: $405.22
You Save $160.77 (28%)
USD Priced Per Each
Order In Multiples: 1
Qty:

$50 Minimum Order

New item, Normally in stock. Please contact us to confirm.
Image may vary. Please contact us if you need more images, quote or other information.

• Brand: Atlas Sound

• MPN: MWRCVR

• Ship Weight: 1lbs

• GTIN: 612079663354

• Condition: New

• Availability: In Stock

• Seller: A-I Consolidated

• Category: Electronics > Audio > Audio Components

Atlas Sound MWRCVR - Wireless Microphone UHF 100 Frequency 2-Way Sync. Receiver.




Description

The AtlasIED MWRCVR wireless receiver is the ideal choice for a variety of applications ranging from classrooms and conference rooms to lecture halls and live presentations. Designed to work in conjunction with either the MWHHM wireless handheld microphone or the MWBTP wireless belt-pack microphone, the MWRCVR allows for great flexibility in sound reinforcement applications. With the ability to connect to a variety of devices via the included balanced XLR or unbalanced line output the MWRCVR can be used with a variety of amplifiers or mixers to address the needs of any installation. Multiple units can be used in a single installation since the unit receives transmission via the UHF frequency band and pairs to individual MWHHM or MWBTP on available channels. The unit can be used as a standalone piece on a shelf or desk or it can be rack-mounted by itself or with a second MWRCVR using the rack mount kit, model MWRMK (sold separately).


FEATURES
  • Multi-Function LCD Display For Channel / Frequency, Volume Level, and Signal Strength

  • Patented Technology For 2-Way Data Transfer Between Transmitter And Receiver

  • 100 Frequencies Available Through The 25MHz Signal Band

  • Dual Antennas Reduce Distortion

  • IR Sensor for Connection to Wireless Microphone

  • Selectable Mic or Line Output


SPECIFICATIONS
FREQUENCY RANGE UHF 566MHz - 585.8MHz
SWITCHING BANDWIDTH 25MHz
SWITCHABLE FREQUENCIES 100
DISPLAY TYPE LCD
OPERATING RANGE 100m Direct Sight
SENSITIVITY -95dBm
SIGNAL TO NOISE RATIO > 110dB
THD < 0.5%
POWER SUPPLY 100-240V AC, 12V DC/1.6A
DIMENSIONS 7.87" x 5.91" x 1.73" (200mm x 150mm x 44mm)
WEIGHT 1.39 lbs (0.63kg)

Datasheet, Installation Sheet, and Other Information Available Upon Request.
